OHM Cronus loudspeakers

OHM Cronus banner

OHM Cronus series

OHM Cronus is a series of surface loudspeakers. Cronus has a wide audio coverage and is suitable for fixed installation and as a portable solution. The compact, lightweight loudspeakers are specifically designed to add extra clarity during performances, so the voice is not lost amongst guitars and percussion, but clearly audible. For additional bass enhancement, the Cronus-Sub can be used.

Vocal clarity like no other

The 300 Watts Cronus-10 and 350 Watts Cronus-12 passive loudspeakers are designed with a woofer of 10 and 12 inches, respectively, and a 1-inch compression driver. The driver is capable of 129 and 130 dB SPL, respectively. The mid/high features a phase-plug limited horn that drives an internal slot driver that achieves a horizontal wide-angle dispersion of no less than 160 degrees. The loudspeakers achieve an ultra-linear frequency response of 65 or 50 Hz, respectively. The 18-inch LVC driver in the subwoofer delivers OHM’s distinctive sound.

Sleek and strong

The Cronus-10 and Cronus-12 surface loudspeakers are fitted with two 4-pin speakON connectors as a standard, one input and one link. The speakON connectors are wired on pins + 1-1, with pass through of pins + 2-2. The loudspeakers can be installed on an OHM tripod by means of the integrated S-SA top hat. It is also possible to install the loudspeakers through the mounting option on the back, in combination with the large wall mounting brackets from Ohm. The accompanying compact subwoofer is aesthetically matched to the design of the loudspeakers and is easy to handle due to the recessed ergonomic pocket handles. Optionally, the Cronus-Sub can be installed vertically on a tripod. The OHM Cronus series consists of a lightweight MDF or birch plywood construction, with a steel grille and black foam. The finish is realised with a tough, durable scratch-resistant black textured paint. This series is also available in white or RAL colours on request, so the equipment fits into any interior.

Specifications of the OHM Cronus series

Cronus-10 Cronus-12 Cronus-Sub

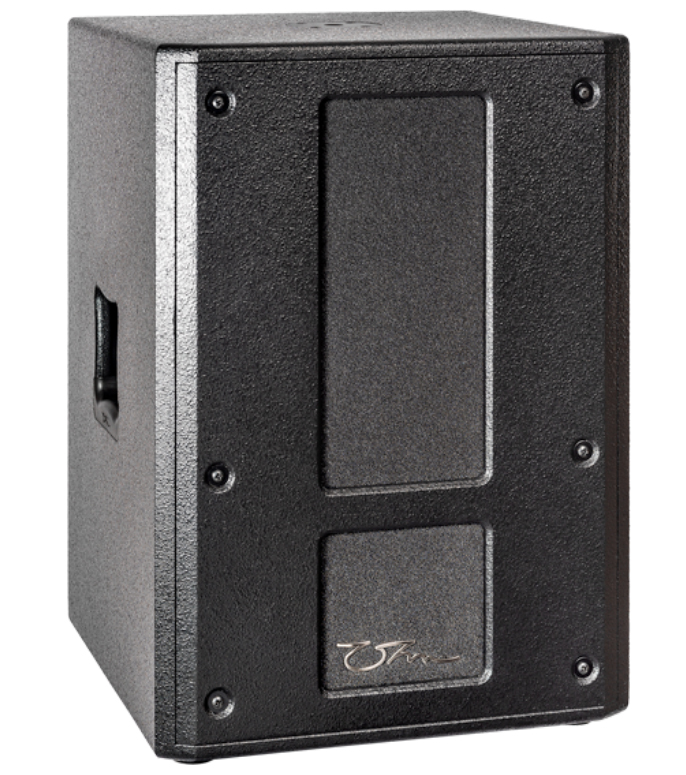

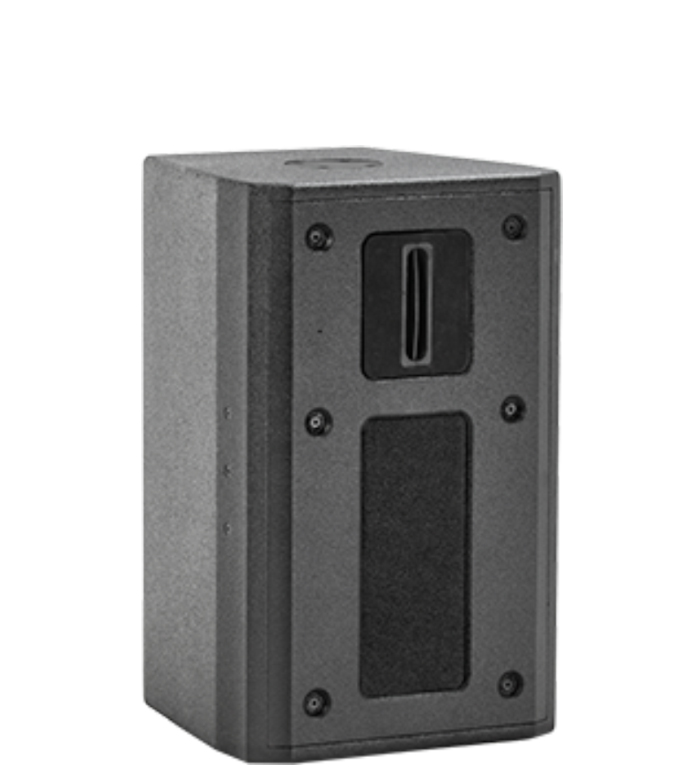

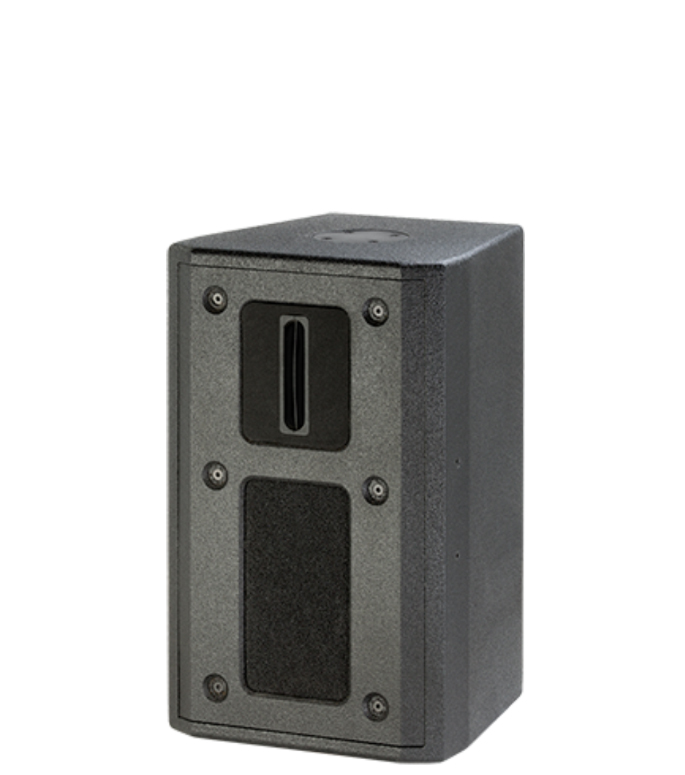

OHM Cronus-10 OHM Cronus-12 OHM Cronus-Sub
Frequency response (±3 dB) 69 Hz – 24 kHz 57 Hz – 24 kHz 47 Hz – 250 Hz
Frequency response (±10 dB) 65 Hz – 26 kHz 50 Hz – 26 kHz 41 Hz – 250 Hz
Sensitivity 96 dB 98.5 dB 102 dB
Max. SPL 129 dB 130 dB 137 dB
Coverage angle 160° – 60° 160° – 60° Omn
Power handling 300 W 350 W 800 W
Max. power handling
1200 W 1400 W 3200 W
Nominal impedance 8 Ω 8 Ω 8 Ω
Connectors 2 x speakON  connectors 2 x speakON  connectors 2 x speakON  connectors
Environmental conditions IEC268 IEC268 IEC268
Colour Black Black Black
Dimensions (H x W x D) 536 mm x 330 mm x 330 mm 606 mm x 370 mm x 370 mm 706 mm x 500 mm x 500 mm
Net weight 18 kg 21.1 kg 40.7 kg
Shipping weight 19.1 kg 23.1 kg 42.7 kg
Included hardware Standard cast aluminium top hat
Blanking plate
Standard cast aluminium top hat
Blanking plate
x
Packaged quantity 1 1 1

Exclusive OHM distributor

Tau Audio Solutions BV has been exclusive distributor of OHM’s products in the Benelux. As a qualified partner, Tau happily advises its customers on selecting the right product mix. Tau also offers support with the design and installation of the project, ensuring a fitting solution. Want to experience the products of OHM, like the Cronus series, yourself? Come visit Tau’s showroom.

OHM

OHM is known for their beautiful, high quality loudspeakers. The user friendly, professional products create an emotional connection with the senses, bringing the audience closer than ever to that ultimate audio experience. OHM’s products are very suitable for use during festivals, music performances, tours, events and TV shows. In addition, the loudspeakers are used in temporary and permanent installations in zoos, places of worship, hotels, airports, museums, government buildings, resorts, restaurants, schools, theatres, clubs, bars and shopping centres, for example.

Questions about OHM’s products?

Tau’s enthusiastic team of audio specialists are available to help with any queries. In addition, Tau has virtually all products of OHM and the other brands from its portfolio in stock, to quickly provide everything needed for projects. Need more information about a specific product, advice with purchasing or installing the right audio setup? Or would you like an installation to be carried out by one of the Tau dealers? Please contact Tau through contact form or +31 50 549 9090.
