Clockaudio C button style microphones are a series of boundary microphones with rubber shock absorption that are mounted in the surface, usually a table. The microphones have a low profile at surface height, which means they can be integrated into all kinds of situations, neatly.

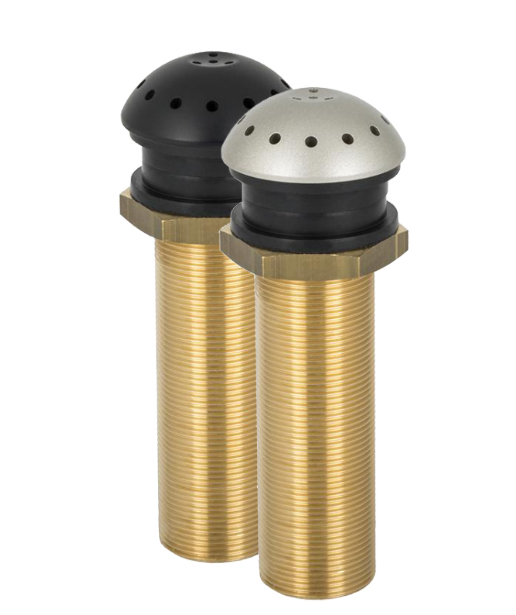

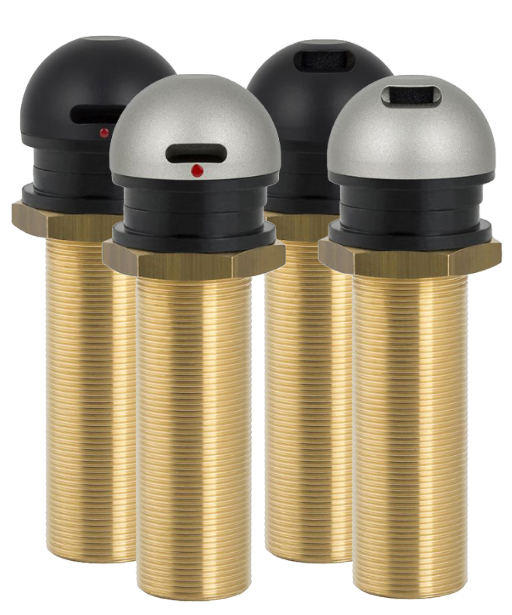

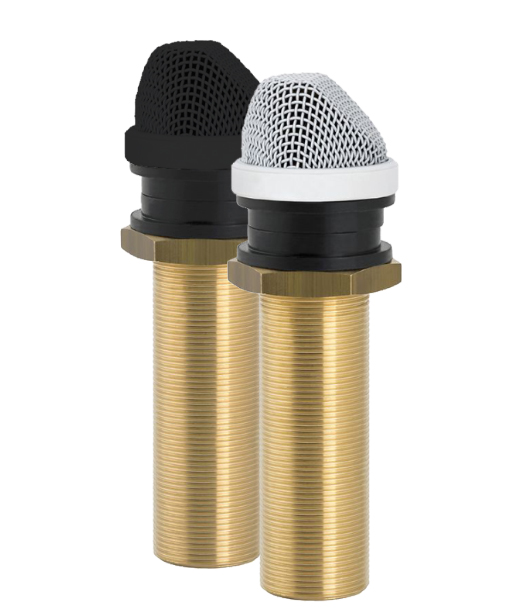

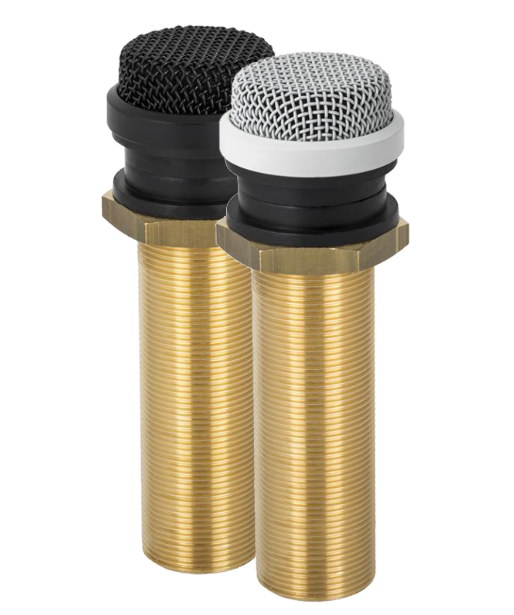

This series of Clockaudio consists of eight button style through-table condenser microphones, that can be installed in a table, desk, ceiling or panel with a thickness of 12 to 50 millimetre. Four of the microphones, the 003 and 011 models, have an omni-directional pattern, the 004 and 012 types have a cardioid pattern. The 003 microphones are flat at the top, the 004 microphones have a slanted speaking surface, the 011 and the 012 microphones have a round, convex button. The microphones all have a robust brass housing, the top of the 003 and 004 models is made of steel, the 011 and 012 models are made of brass. The microphones are available in white, satin black or nickel. This way you can find a suitable microphone for every project!
The microphone is equipped with an integrated phantom power module that accepts 9 to 48 Volts DC. It also contains filters that eliminate all GSM frequencies from 800-1200 Megahertz. RF friendly technology offers immunity from interference from mobile phones and other sources. The microphones have a wide smooth response, a balanced output and are terminated with a male 3-pin XLR.
Clockaudio C button style microphones are very suitable for wide range of professional sound installations. Therefore, the series can very well be used in, among others, the following applications.
| C 003E-RF / C 003EW-RF | C 004E-RF / C 004EW-RF | C 011E-RF / C 011EN-RF | C 012E-RF / C 012EN-RF | |
 |
 |
 |
 |
|
| Frequency response | 20 Hz – 20 kHz | 100 Hz – 16 kHz | 50 Hz – 20 kHz | 50 Hz – 18 kHz |
| Sensitivity | -42 dB +/- 3 dB | -37 dB +/- 3 dB | -42 dB +/- 3 dB | -37 dB +/- 3 dB |
| Max. SPL | 120 dB | 125 dB | 120 dB | 120 dB |
| Polar Pattern | Omni-directional | Cardioid | Omni-directional | Cardioid |
| Power requirements | 9 – 48 Volts phantom power | 9 – 48 Volts phantom power | 9 – 48 Volts phantom power | 9 – 48 Volts phantom power |
| Nominal impedance | 200 Ω | 200 Ω | 200 Ω | 200 Ω |
| Connectors | Phantom power Male 3 pin XLR |
Phantom power Male 3 pin XLR |
Phantom power Male 3 pin XLR |
Phantom power Male 3 pin XLR |
| Colour | Satin black / White | Satin black / White | Satin black / Nickel | Satin black / Nickel |
| Dimensions (total height x diameter mount) | 90.5 mm x 23.5 mm | 90.5 mm x 24 mm | 85 mm x 24 mm | 90 mm x 24 mm |
| Dimensions (visible height x diameter button) | 15 mm x 31 mm | 22 mm x 31 mm | 10.4 mm x 30 mm | 15.1 mm x 28 mm |
| Net weight | 0.113 kg | 0.103 kg | 0.112 kg | 0.126 kg |
| Packaged quantity | 1 | 1 | 1 | 1 |
Tau Audio Solutions BV has been exclusive distributor of Clockaudio’s products in the Netherlands for years. As a qualified partner, Tau happily advises its customers on selecting the right product mix. Tau also offers support with the design and installation of the project, ensuring a fitting solution. Experience the possibilities and quality of Clockaudio´s products in Tau’s showroom.
Clockaudio is known for their innovative, high-quality, reliable microphones. The goosenecks, wireless and boundary microphones, among others, offer seamless integration on both a technical and aesthetic level. Clockaudio’s products are used in boardrooms, fire stations, conferencing rooms, court rooms, government buildings, schools, security situations, universities, care homes and the automotive industry, for instance.
Tau’s enthusiastic team of audio specialists are available to help with any queries. In addition, Tau has virtually all products of Clockaudio and the other brands from its portfolio in stock, to quickly provide everything needed for projects. Need more information about a specific product, advice with purchasing or installing the right audio setup? Or would you like an installation to be carried out by one of the Tau dealers? Please contact Tau through contact form or +31 50 549 9090.
